- Size: 1.5 m X 3.0 m
- Place of Origin: China
- Brand Name: VICCAM
- Model Number: VL1530F240
- Weight: 10000.000 kg
Technology parameters
| Model | VL1530F240 |
| Working range(XY): | X axis 1500mm Y axis 3000mm |
| Max. axis speed simultaneous | 150m/min |
| Power of Laser Resource | 2000W |
| Power Supply | 380V three phase |
| Total electrical consumption of system | 30KW |
| Max.material thickness with 2400w Fiber Laser Sauce: | Mild steel: 16mm Stainless steel: 10mm |
| Dimensions: | Length 5500mm Width 3010mm Height 2000mm |
Product description
Feature:
The VL1530F240 is the improved laser oscillator power to 2400w. Extremely high parts productivity and higher grade cutting quality for thin to medium thick sheet metal thank to the upgrade automation table and high power laser oscillator.
Benefit
Innovative procedures for rapid, reliable processing
A high degree of automation
Efficiency
Ability to cut steel sheets up to 12mm thick
Automatic change table reduces unproductive time
The fiber laser’s energy efficiency performance ensure lower power consumption
Machine detail

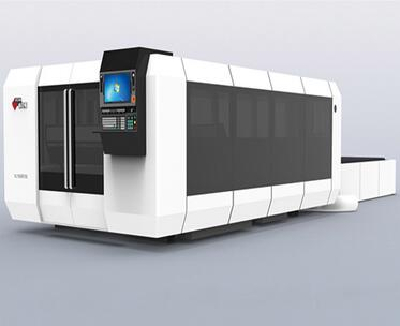

Good view into the machine working area with totally full laser safety protection
Increased speed and dynamics through import linear drive technology
More powerful laser oscillator ensure the processing more productivity.
- Size: 1.5 m X 3.0 m
- Place of Origin: China
- Brand Name: VICCAM
- Model Number: VL1530F240
- Weight: 10000.000 kg
