- Size: 1.5 m X 3.0 m
- Place of Origin: China
- Brand Name: VICCAM
- Model Number: VL1530F100
- Weight: 10000.000 kg
Technology parameters
| Model | VL1530F100 |
| Working range(XY): | X axis 1500mm Y axis 3000mm |
| Max. axis speed simultaneous | 150m/min |
| Power of Laser Resource | 1000W |
| Power Supply | 380V three phase |
| Total electrical consumption of system | 17KW |
| Max.material thickness with 1000w Fiber Laser Sauce: | Mild steel: 8mm Stainless steel: 5mm |
| Dimensions: | Length 5500mm Width 3010mm Height 2000mm |
Product description
Feature:

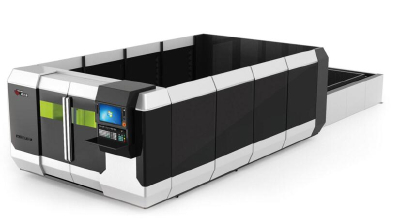

The VL1530F100 is also the dynamic performance machine. Together with more powerful 1000w import laser oscillator, it let you became the thin sheets processing and productivity expert.
Benefit
High cutting productivity
Easy operation
Outstanding price/performance ratio
Efficiency
Productivity advantages for thin sheets
The fiber laser’s energy efficiency performance ensure lower power consumption
Minimal downtime due to maintenance-free fiber beam guide
Machine detail
Good view into the machine working area with totally full laser safety protection
Optional automation table help your working more efficiency.
Imported laser oscillator ensure the processing performance and quality.
- Size: 1.5 m X 3.0 m
- Place of Origin: China
- Brand Name: VICCAM
- Model Number: VL1530F100
- Weight: 10000.000 kg
